Svelte bronze sintered diamond wheel 50mm special-shaped straight edge diamond wheel trapezoidal groove edge glass inner hole grinding wheel

If you want to know more about the products or discounts, need to customize other models or styles, please contact us

Tel: +86 15816929512

Wechat/WhatsAPP：+86 15816929512

E-mail: info@yingmeida.  com

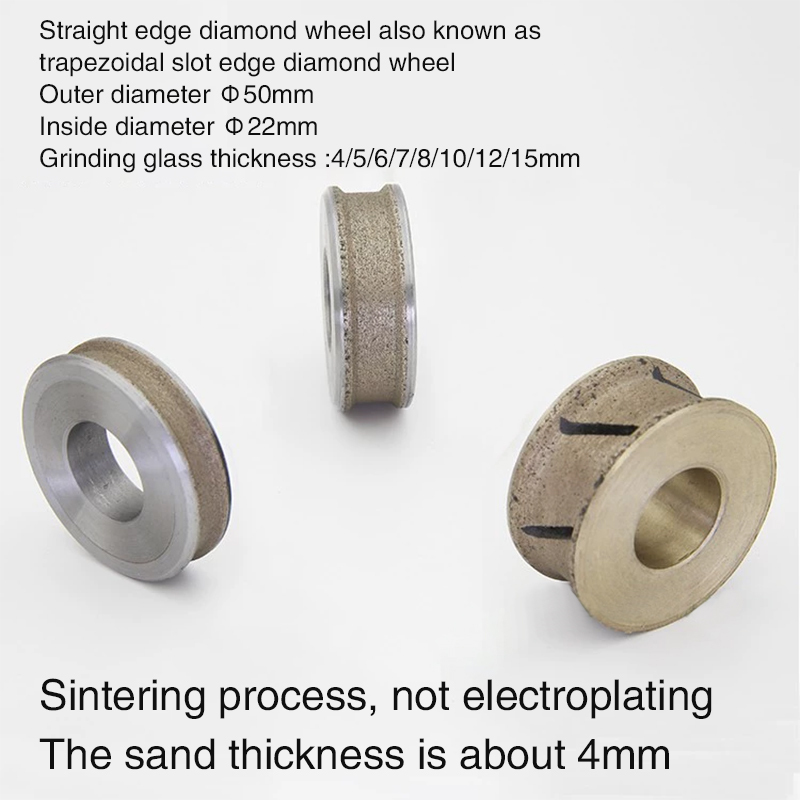

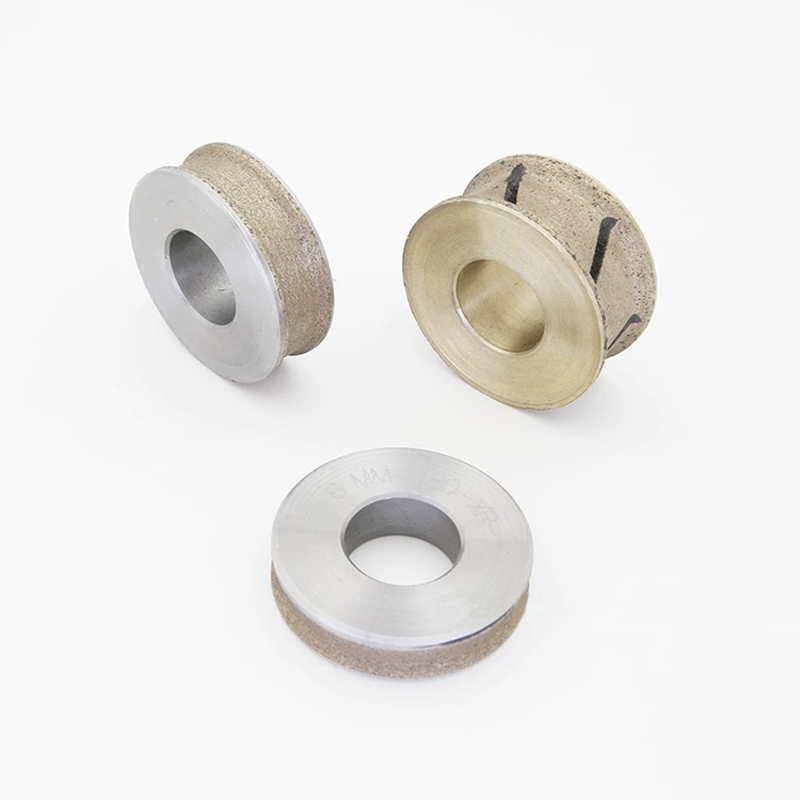

Name: Straight edge Diamond wheel (also known as eight-figure edge, Trapezoidal edge diamond wheel)

Outer diameter: Φ50mm

Inner diameter: Φ22mm

Grinding glass thickness: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 19mm, etc

Mesh/granularity: 150#, 180# (please contact customer service if you need other mesh)

Weight: 0.13kg-0.25kg

Main material: emery, bronze, 45# steel

Processing technology: sintering (non-surface electroplated sand)

Sand thickness: about 4mm

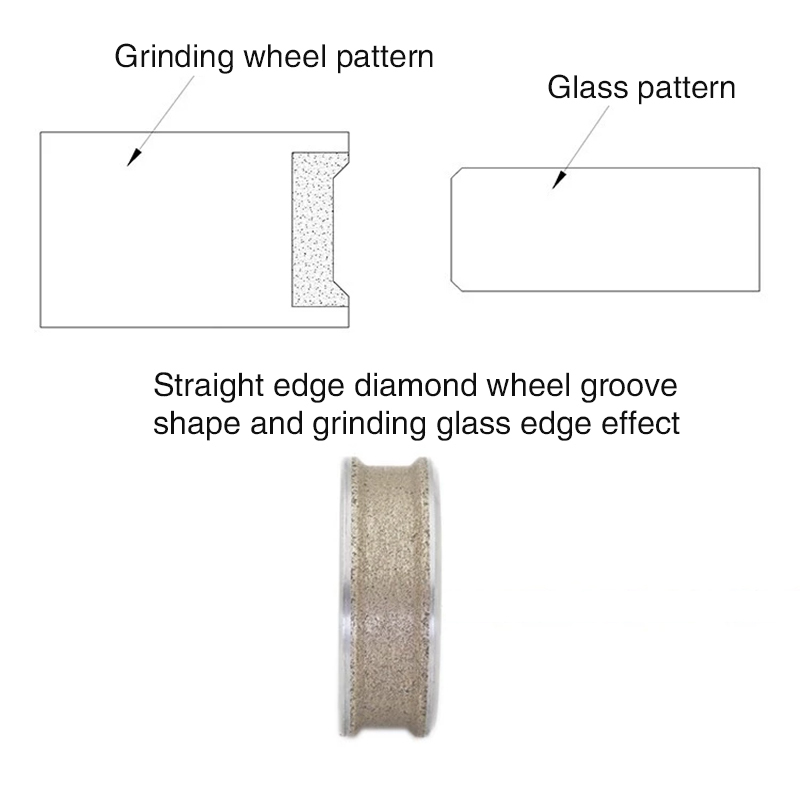

Advantages: The diamond wheel sand layer is thick, sharp and wear-resistant; And the diameter of the grinding wheel is small, which is very suitable for processing small diameter inner round glass and bar holes with R Angle.

Application: It can be used for grinding the inner round and inner square hole glass of the glass inner round edging machine and the small hand-held edging machine to the glass peripheral and inner hole.
