Straight shank small grinding head Stainless steel mounting handle glass manual edging wheel straight edge semi-round edge emery wheel rough grinding
If you want to know more about the products or discounts, need to customize other models or styles, please contact us
Tel: +86 15816929512
Wechat/WhatsAPP:+86 15816929512
E-mail: info@yingmeida. com

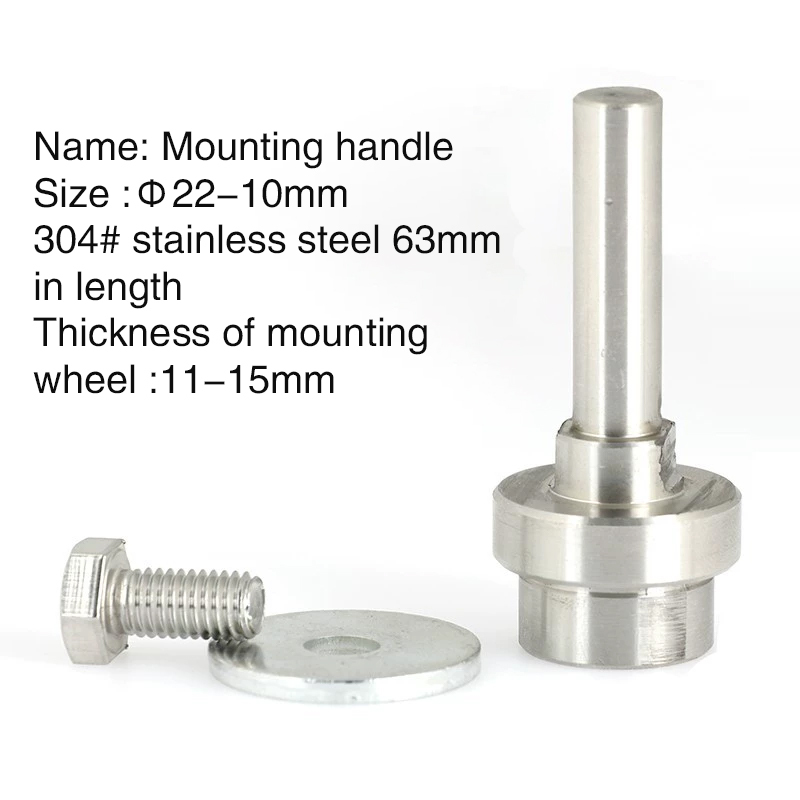

Name: Grinding head mounting handle/straight edge round edge diamond wheel

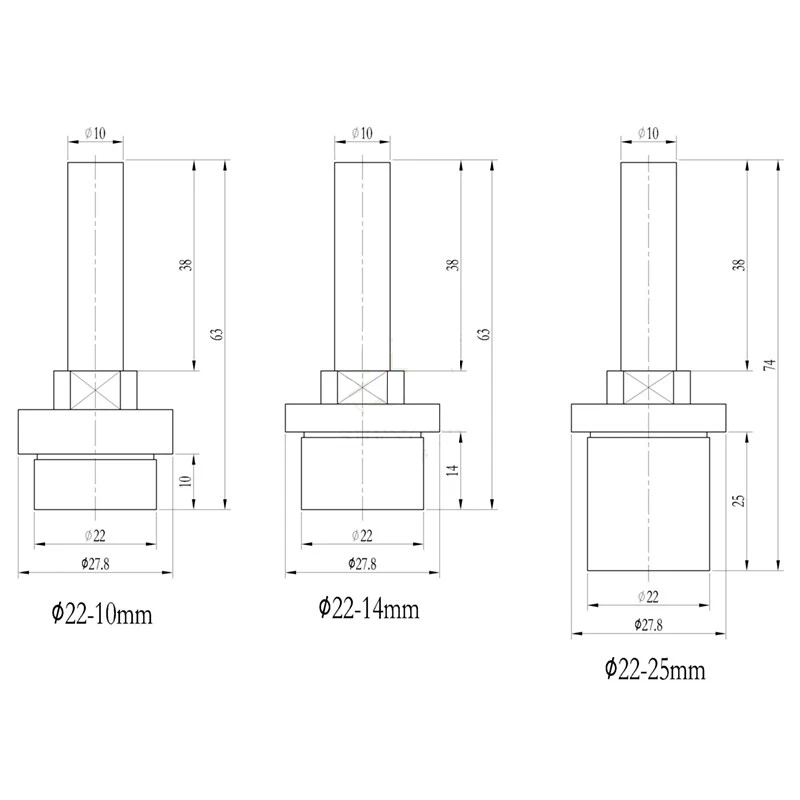

Mounting handle length: 63, 74mm
Mounting handle material: 304# stainless steel

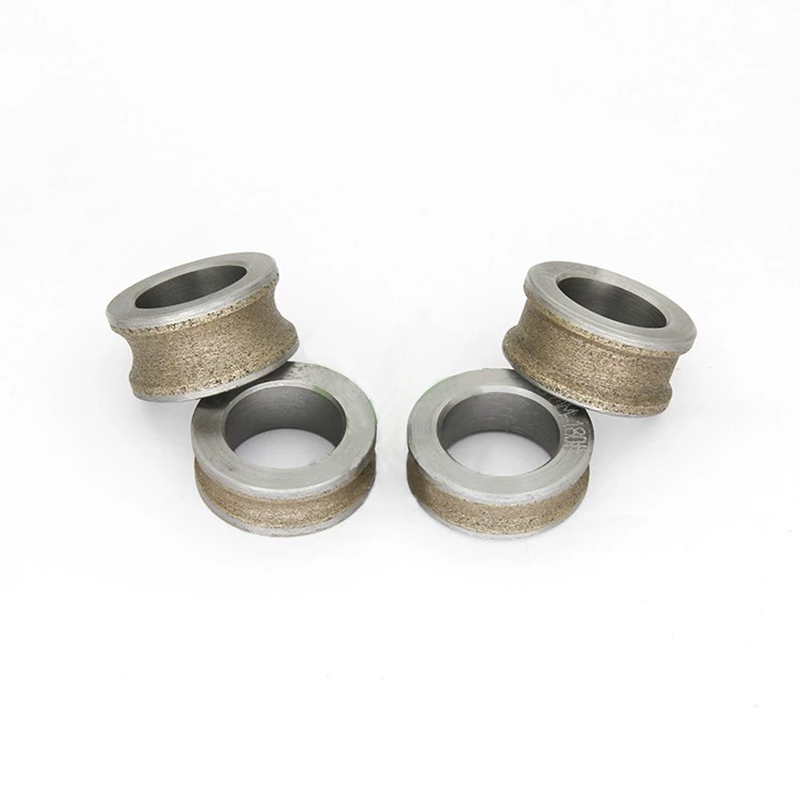

Diamond wheel Outer diameter: Φ35/50mm
Diamond wheel inner diameter: Φ22mm
Mounting handle weight: 0.12-0.15kg
Steel wheel grinding glass thickness: 4, 5, 6, 8, 10mm, etc
Mesh/particle size: 150#, 180 #, 240#
Grinding wheel weight: 0.05kg-0.2kg
Main material: emery, bronze, 45# steel
Processing technology: sintering (non-surface electroplated sand)
Sand thickness: 2-3mm
Advantages: The diamond wheel sand layer is thick, sharp and wear-resistant; And the diameter of the grinding wheel is small, which is very suitable for processing small diameter inner round glass and bar holes with R Angle.
Application: It can be used for grinding the inner round and inner square hole glass of the glass inner round edging machine and the small hand-held edging machine to the glass peripheral and inner hole.
