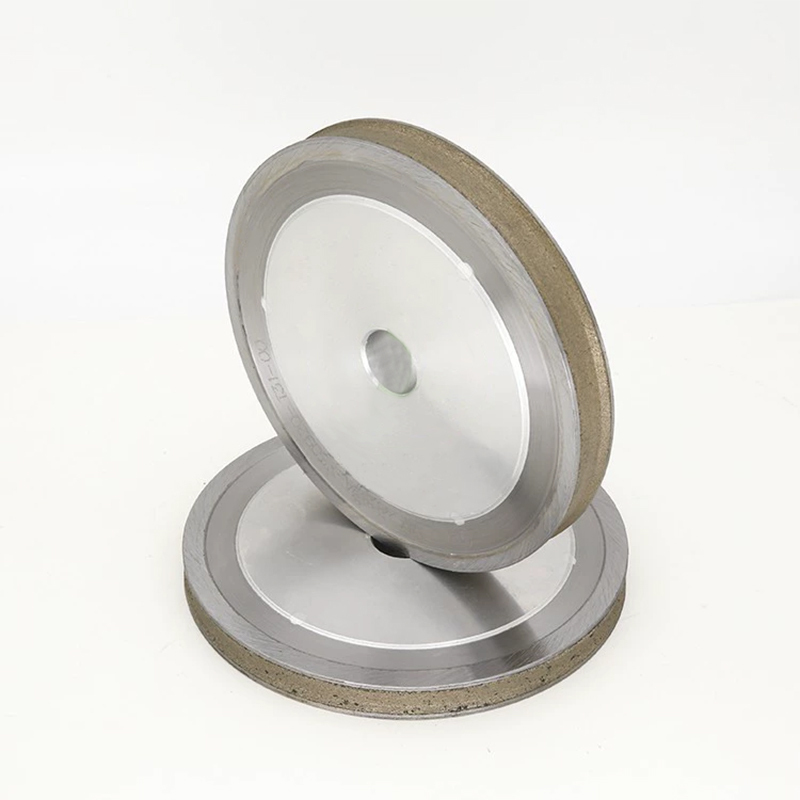

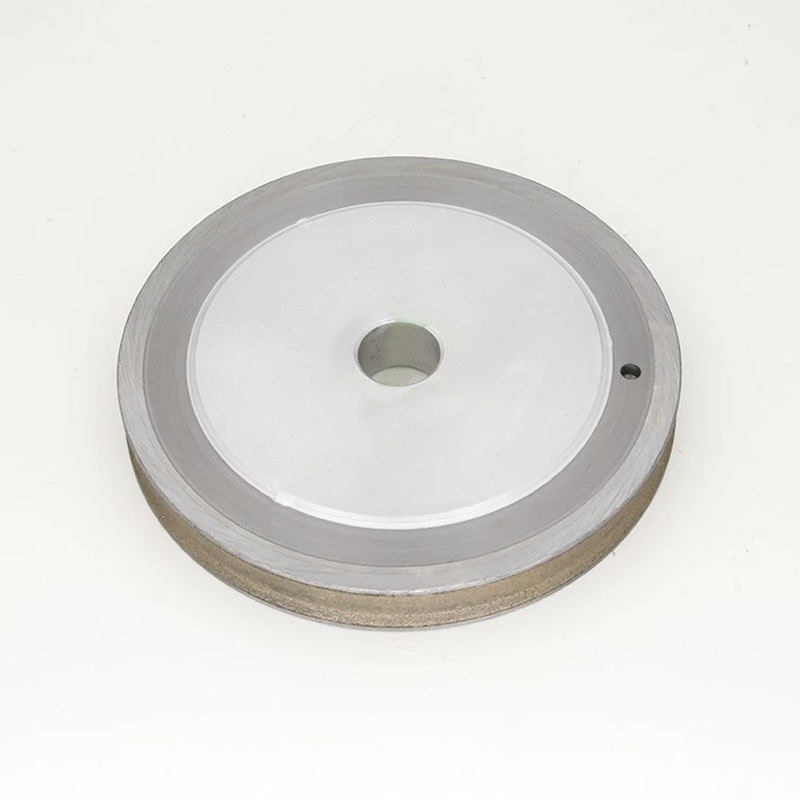

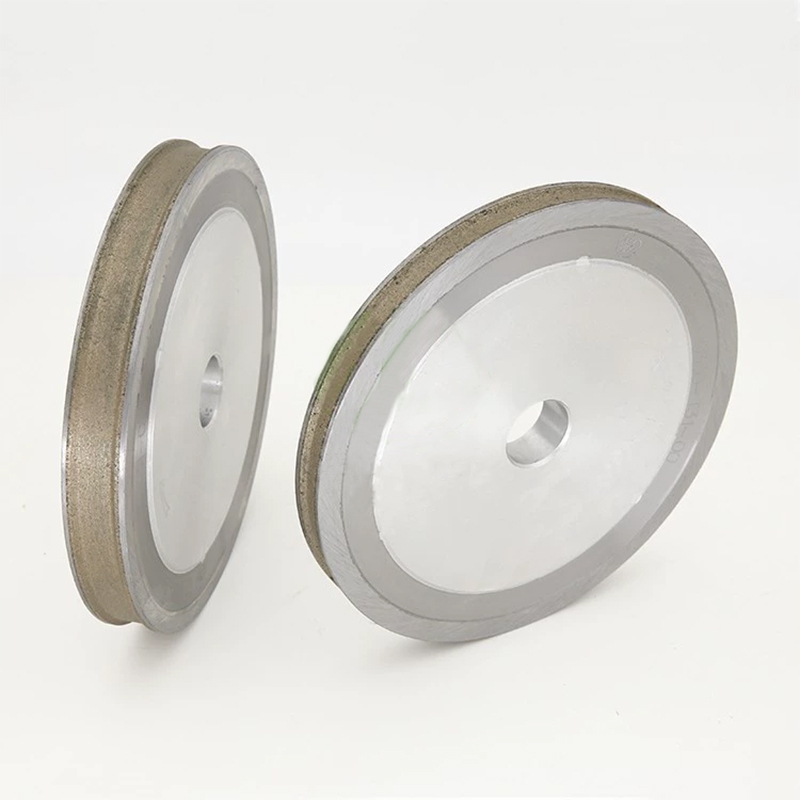

Special-shaped machine grinding wheel 150*22 hole special-shaped straight edge diamond wheel angular chamfered diamond sintered glass grinding wheel

f you want to know more about the products or discounts, need to customize other models or styles, please contact us

Tel: +86 15816929512

Wechat/WhatsAPP：+86 15816929512

E-mail: info@yingmeida.  com

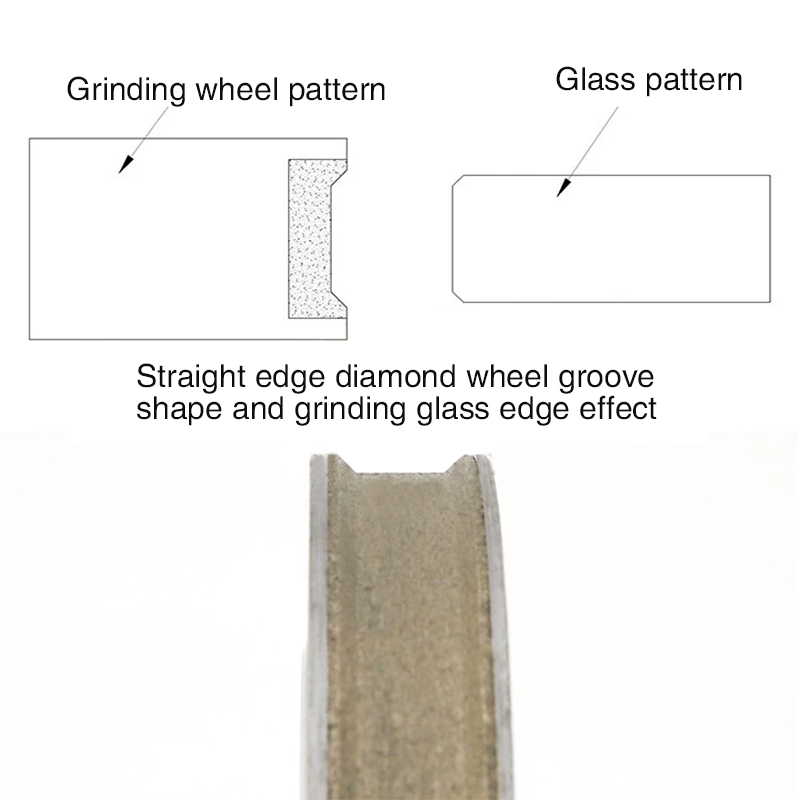

Name: Straight edge Diamond wheel (also known as Trapezoidal edge diamond wheel)

Outer diameter: Φ150mm

Inner diameter: Φ22mm

Grinding glass thickness: 2, 2.5, 3, 3.2, 3.5, 4, 5, 6, 7, 8, 9, 10, 12, 13, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25mm, etc

Mesh/Particle size: 80, 100, 120, 150, 180, 240# (Take a picture, please leave a message!)

Weight: 0.8kg-3.5kg

Main material: emery, bronze, aluminum, 45# steel

Processing technology: sintering

Sand thickness: about 5mm

Advantages: The diamond wheel sand layer is thick, sharp and wear-resistant.

Applicable equipment: glass shaped machine, chamfering machine, straight side/double round edge machine, etc.
