Duck mouth diamond wheel single stage duck edge diamond sintered grinding wheel special-shaped machine glass rough grinding wheel edge grinding wheel

If you want to know more about the products or discounts, need to customize other models or styles, please contact us

Tel: +86 15816929512

Wechat/WhatsAPP：+86 15816929512

E-mail: info@yingmeida.  com

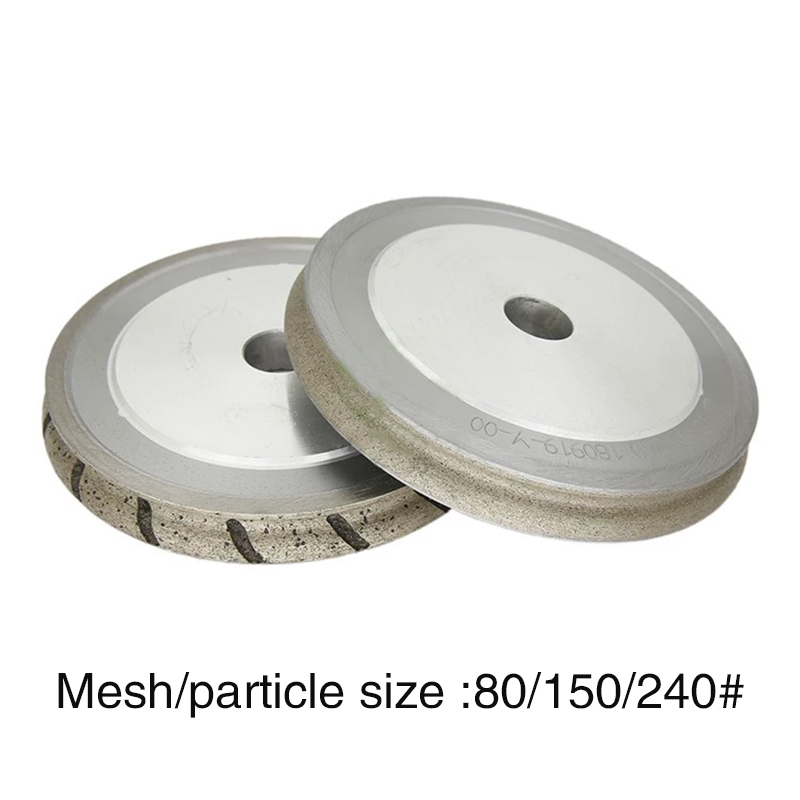

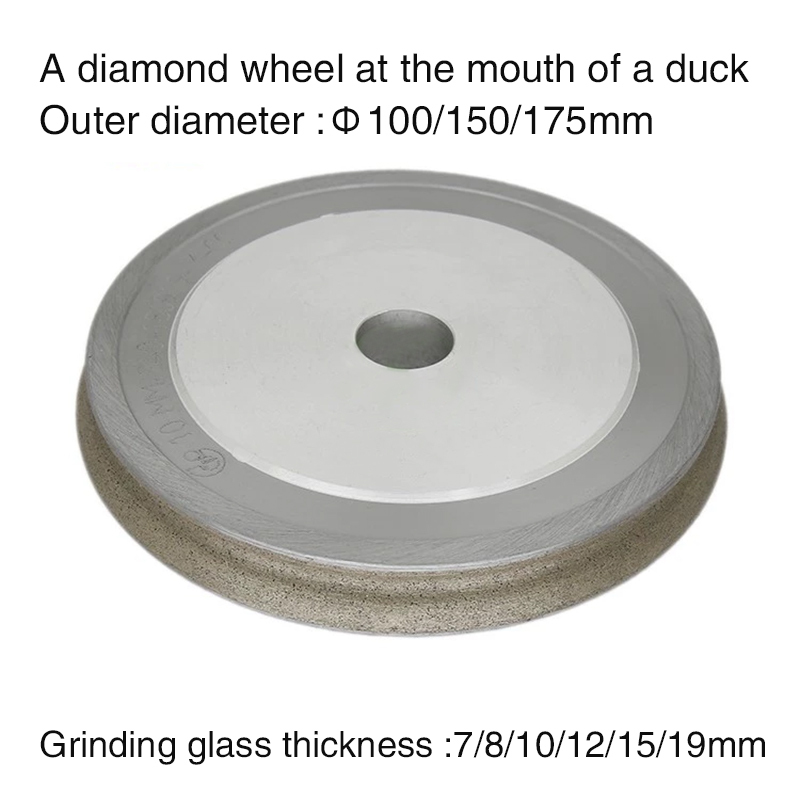

Name: Duck mouth diamond wheel

Outer diameter: Φ100/150/175mm

Inner diameter: Φ22mm

Grinding glass thickness: 7, 8, 10, 12, 15, 19mm

Mesh/particle size: 80, 150, 240# that is, coarse sand, medium sand, fine sand

Weight: about 1-3.5kg

Main material: emery, bronze, aluminum, 45# steel

Processing technology: sintering

Sand thickness: about 4mm

Advantages: The diamond wheel sand layer is thick, sharp and wear-resistant.

Applicable equipment: glass shaped machine, chamfering machine, straight side/double round edge machine, etc.
